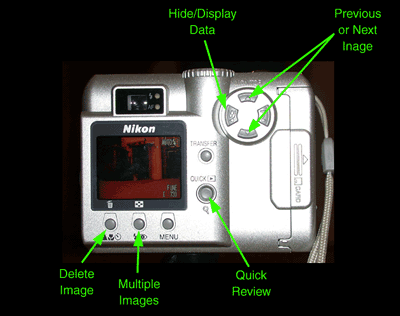

While the camera is in image capture mode, the images stored in memory can be examined using the button presses listed below:

  • Press the Quick Review button to review the stored images.
    • The first press shows a miniature of the last image taken.
    • The second press fills the monitor.
    • The third press returns the camera to image capture mode.
  • Press the Up and Down buttons to move backwards and forwards through the image collection.
  • Press the Wide Angle button to hide/show image data.
  • Press the Multiple image button to see several images at once.
    • The first press shows 9 images.
    • The second press shows 4 images.
    • Navigate through the images using the Up, Down, Left and Right Multifunction buttons.
    • Press the Multiple Images button a third time to return to the single image view.
  • Press the Trash button to delete an unwanted image.
